65' Mustang GT

Rather than crap all over Gydyup's thread, I thought I should start my own. Due to a mishap at the track I needed to replace the RH front fender which was damaged in 3 places:





Since the paint on the car is over 30 years old with some scratches and the normal fading, I decided to give the body a complete winter makeover. First I removed the tranny and motor, then the interior. Finally I removed the windshield, doors and the front cap. Here is an early November shot:



Since I did not know the condition of the cowl vent area, I decided that I needed to start there. I drilled out 167 spot welds and found that the hats were in great shape.



Unfortunately there were other problems that dictated I replace some sheet metal:





I ordered 2 cowl replacement panels from CJ Pony parts:





I then proceeded to cut out the offending metal and trimmed my patches to fit:





You never have enough vice grips for this type of job.

I tacked it into place with my mig welder, then kept going over it until all the holes and seams were plugged. Next I brazed over the welded areas to fill any remaining pinholes that were in the pan area:



After the grinding was done, I needed to strip the rest of the paint with my DA:





I then used body filler to blend the new seams:



Before I could go on, I needed to repair a couple of rust areas on the upper cowl:





I cut out the rust and butt welded scrap metal in place:



Once done to my satisfaction, I stripped the remaining paint off both the bottom and the top of the cowl:



__________________
Dennis

My little 65' Stang street car:



Dart 428W NA, 4 Spd, 4:33, on pump gas pushing 3550lbs.

10.494@128.76

Last edited by ShotRod64; 01-24-2013 at 09:43 PM. Reason: title change
dennis111 is offline   Reply With Quote Quick reply to this message
Sponsored Links
Advertisement

Old 11-27-2010, 04:58 PM   #2 (permalink)
Tech Contributor Gold

Join Date: Dec 2004
Location: Amish Wonderland Of Central PA
Posts: 4,515
Garage
Re: 65' Mustang GT body restoration.

This morning I started with this:



I masked it off:



Then I applied the epoxy primer to both it and the inside of the upper cowl:





Once it was setup, time for some seam sealer around the cowl hats:





I allowed the sealant time to setup, then the real fun began when I laid down 3 coats of Rangoon Red acrylic enamel:







Sometimes it is a shame to hide all that good craftsmanship inside where no one will ever see it again:

__________________
Dennis

My little 65' Stang street car:



Dart 428W NA, 4 Spd, 4:33, on pump gas pushing 3550lbs.

10.494@128.76

Last edited by dennis111; 11-27-2010 at 05:10 PM.
dennis111 is offline   Reply With Quote Quick reply to this message
Old 11-27-2010, 05:11 PM   #3 (permalink)
Premium Member

Join Date: Sep 2004
Location: Sunny Arid Desolate Port Orchard WA
Posts: 34,451
Re: 65' Mustang GT body restoration.

Going to be a shame to get spot weld splash all over that nice pretty paint

Where is the Ground contact coming from during re-installation?
FEandGoingBroke is offline   Reply With Quote Quick reply to this message
Old 11-27-2010, 05:26 PM   #4 (permalink)
Tech Contributor Gold

Join Date: Dec 2004
Location: Amish Wonderland Of Central PA
Posts: 4,515
Garage
Re: 65' Mustang GT body restoration.

Quote:
Originally Posted by FEandGoingBroke View Post

Where is the Ground contact coming from during re-installation?
Just had to remove the tape to reveal some shiny metal that will get a couple of coats of weld through primer before reassembly.



Topside remains bare metal.
__________________
Dennis

My little 65' Stang street car:



Dart 428W NA, 4 Spd, 4:33, on pump gas pushing 3550lbs.

10.494@128.76

Last edited by dennis111; 11-27-2010 at 05:29 PM.
dennis111 is offline   Reply With Quote Quick reply to this message
Old 11-27-2010, 05:33 PM   #5 (permalink)
Premium Member

Join Date: Sep 2004
Location: Sunny Arid Desolate Port Orchard WA
Posts: 34,451
Re: 65' Mustang GT body restoration.

excellent! I missed that!
FEandGoingBroke is offline   Reply With Quote Quick reply to this message
Old 11-29-2010, 04:14 AM   #6 (permalink)
Tech Contributor Gold

Join Date: Dec 2004
Location: Amish Wonderland Of Central PA
Posts: 4,515
Garage
Re: 65' Mustang GT body restoration.

Remasked and sprayed weld through primer on the bare metal:




Welding up holes in the front apron. Found that a 3/8" thick piece of solid copper works wonders when plugging small holes or as a preventative to blow through:



Yeah, I went too deep with the spot weld tool and need to touch up the divots prior to welding the apron-to-cowling top plate.
__________________
Dennis

My little 65' Stang street car:



Dart 428W NA, 4 Spd, 4:33, on pump gas pushing 3550lbs.

10.494@128.76

Last edited by dennis111; 11-29-2010 at 04:27 PM.
dennis111 is offline   Reply With Quote Quick reply to this message
Old 11-29-2010, 05:20 AM   #7 (permalink)
Registered User

Join Date: Apr 2001
Location: Central West Virginia
Posts: 7,054
Re: 65' Mustang GT body restoration.

Wow, you've got one EXTREMELY winter ahead of you!

Looks Great, and good luck!
__________________

66 Mustang, Toploader 4-speed
Pump Gas 306, 10.134@134.71
http://www.mustangworks.com/cgi-bin/moi-display.cgi?220
n2omike is online now   Reply With Quote Quick reply to this message
Old 12-05-2010, 05:37 PM   #8 (permalink)
Tech Contributor Gold

Join Date: Dec 2004
Location: Amish Wonderland Of Central PA
Posts: 4,515
Garage
Re: 65' Mustang GT body restoration.

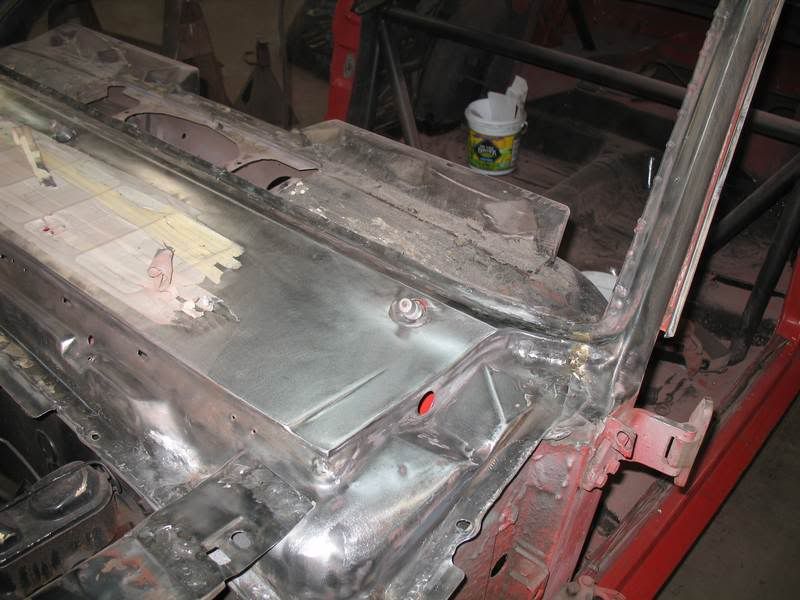

Throughout the week I've been tack welding the cowl in place and finally finished it up yesterday:



Note that the tape is over the vent to help cut down on the amount of grinding and sanding crap that might fall in there.

Today I broke out the DA sander and went to town on the roof. 3 hours later It was bare (except for around the rear window.) There is some repair work to be done on the driver's side roof where apparently someone sat on it in the past. Although the dent covers a somewhat large area, it is minor and an easy repair.



The rear glass removal is being saved as an evening, after work project.

The car looks kind of cool in its current 2 tone appearance:



Hope to get the roof repaired and all the current bare metal primered this coming weekend.

Oh, here is a shot of the cheap $5 spot weld tool that I used when removing the cowl:



It worked terrific. This one tool cut 167 spot welds plus it was used to make holes in the patch panels before plug welding.
__________________
Dennis

My little 65' Stang street car:



Dart 428W NA, 4 Spd, 4:33, on pump gas pushing 3550lbs.

10.494@128.76

Last edited by dennis111; 12-12-2010 at 05:04 PM.
dennis111 is offline   Reply With Quote Quick reply to this message
Old 12-12-2010, 04:59 PM   #9 (permalink)
Tech Contributor Gold

Join Date: Dec 2004
Location: Amish Wonderland Of Central PA
Posts: 4,515
Garage
Re: 65' Mustang GT body restoration.

Removed the rear window and found scaly rust in the channel:



Attempted to wirebrush it but all it did was burnish the rust so that it was shiny. I ran to our nearest farming supply and purchased this $10 spot sand blaster and some media:





I did a decent job, but I had to fill the bag at least 40-50 times to do the bottom channel. Unfortunately I found some rust holes that need repair:



Not wanting to let the roof and cowl remain bare another couple of weeks (Christmas is coming, you know) I went ahead and repaired the dings in the roof by first doing some hammer and dolly work. Once it was fairly level, I covered the offending areas with lightweight body filler:



Once it was sanded to my satisfaction, I masked off much of the car in preparation for the epoxy primer coat:





I wiped it down with wax and paint remover and then shot on 2 wet coats:





I waited a couple of hours for the epoxy primer to dry and then I covered it up with 3 coats of primer surfacer. Once it set up, I removed the masking:





As seen below, I did not primer the complete roof sail panels as I need to do some work in in the rear window channel and I need to re-mig the area where the roof joins the quarter panel, at the quarter window:





Next up will be stripping the quarter panels and then making the wheel flair opening a little wider at the front for taller slicks.
__________________
Dennis

My little 65' Stang street car:



Dart 428W NA, 4 Spd, 4:33, on pump gas pushing 3550lbs.

10.494@128.76

Last edited by dennis111; 12-12-2010 at 05:07 PM.
dennis111 is offline   Reply With Quote Quick reply to this message
Old 12-12-2010, 08:37 PM   #10 (permalink)
Tech Contributor

Join Date: Jan 2002
Location: Ontario,Canada
Posts: 6,440
Garage
Re: 65' Mustang GT body restoration.

Damn Dennis is there anything you can't do?..Now it's bodywork and paint..
__________________

1968 mustang 408W Hybrid..Burns gas and rubber!
11.59@120.95 with 1.68 60ft
frdnut is offline   Reply With Quote Quick reply to this message
Old 12-12-2010, 11:48 PM   #11 (permalink)
Registered User

Join Date: Nov 2006
Location: Peotone IL
Posts: 2,207
Re: 65' Mustang GT body restoration.

Nice work
__________________
Looking for FE fenderwell headers.
http://www.fordmuscleforums.com/maki...ml#post1745153
gbic1 is offline   Reply With Quote Quick reply to this message
Old 12-13-2010, 11:07 AM   #12 (permalink)
Premium Member

Join Date: Sep 2004
Location: Sunny Arid Desolate Port Orchard WA
Posts: 34,451
Re: 65' Mustang GT body restoration.

Looking good!
FEandGoingBroke is offline   Reply With Quote Quick reply to this message
Old 12-13-2010, 02:23 PM   #13 (permalink)
Tech Contributor Gold

Join Date: Dec 2004
Location: Amish Wonderland Of Central PA
Posts: 4,515
Garage
Re: 65' Mustang GT body restoration.

Quote:
Originally Posted by frdnut View Post
Damn Dennis is there anything you can't do?..Now it's bodywork and paint..
Didn't you know that I am a Renaissance man?

Nah,

I'm just a jack(off) of many trades but master of none.

Thanks guys for the good words.


__________________
Dennis

My little 65' Stang street car:



Dart 428W NA, 4 Spd, 4:33, on pump gas pushing 3550lbs.

10.494@128.76

Last edited by dennis111; 12-13-2010 at 05:25 PM.
dennis111 is offline   Reply With Quote Quick reply to this message
Old 12-13-2010, 06:28 PM   #14 (permalink)
Registered User

Join Date: Mar 2006
Posts: 268
Re: 65' Mustang GT body restoration.

Dennis,
Car's looking good. Looks like fun. What epoxy product are you using? In the past I've used the Omni product (PPG) availible from O'Rielly's. Sometimes it takes a day to get it but at $77.99/gal, hardener $15.99/qt. seems to work pretty good and i like the confidence of that layer of epoxy. Again thanks for sharing!!
don
__________________
68 Torino GT FB 351W 4spd
cornhauler is offline   Reply With Quote Quick reply to this message
Old 12-13-2010, 06:56 PM   #15 (permalink)
Tech Contributor Gold

Join Date: Dec 2004
Location: Amish Wonderland Of Central PA
Posts: 4,515
Garage
Re: 65' Mustang GT body restoration.

I too am using Omni products-for the first time. I was a Dupont guy, but my supplier retired. So far I am happy with Omni which is easy for me to get here in the sticks.

Epoxy primer/hardener:



Primer Surfacer/hardener:



The filler I use is Evercoat Rage Gold. Great stuff, applies well, sands good but is on the expensive side.

Topcoat will probably be plain old hardened Omni Acrylic Enamel. I prefer BC/CC, but Figure that Acrylic Enamel will be the easiest to repair should I have another racing incident, such as dropping a wrench on the fender.
