Installation of Calvert 90/10’s

This article focuses on removing and installing front shock absorbers on a Mustang. The info found here can also be used on other small Fords, such as Falcons and Comets, with a minor difference at the top of the shock.

The old shocks that are being removed are Summit brand racing shocks, which are also available under the CE brand name. Manufactured by Deutsch Tech, they are 3 position adjustable. Appearance wise they look just like any shock absorber found on the front of the Mustang.

The replacement shocks being installed are Calvert Racings (the developers of Caltracs) new “true” 90/10 drag racing shocks. They are non-adjustable and recommended for drag race only.

Here is a picture of both shocks together. The Summit/CE on the top and the Calvert on the bottom:



The Calvert shock has the same T shaped mounting bracket as the Summit on the bottom. At the top, the Calvert shock uses a straight shaft instead of a T. This is so that the Calvert shock can fit a wider range of vehicles, such as Falcons and Comets or any other Ford products with a similar design. Also included with my shocks was a special bracket and other hardware that takes the place of the T, so that the shock can be adapted to the Mustang.



Now on to the shock absorber removal. Below is how the factory shock is mounted in a Mustang:



Note that there are 2 bolts holding the shock to the shock tower bracket. These must be removed. In order to fish the shock out of the bracket, you will also need to remove the 3 nuts that hold the bracket to the shock tower. If the wheels are still on the ground, it should be easy. If not, jack up the appropriate wheel to make it easier to fish off the bracket. Here is the shock tower with the bracket removed:



The lower end of the shock is mounted to the upper control arm. In order to remove the shocks, it is easiest to raise the car and support it by jack stands:



If you look under the upper control arm, you can see the 2 mounting nuts that must be removed--they are the 2 that are located inside the big oval hole:



A jack placed under the lower control arm will help you to reach both nuts, especially the rear one:



Once both nuts are removed, you can remove the shock through the top of the shock tower.

Reinstallation of the shock is almost the reverse of removal. First extend the shock and install one rubber washer on both lower studs. Then drop the shock through the shock tower and align the studs in the same holes as before. Next fish another rubber washer, a metal washer, and a nut onto both studs from underneath the car. This can be a trying experience, but the idea is pretty straight forward. Tighten the assembly. Here is a picture of the order of parts as they are placed on the stud:



Installation of the top is also the reverse of the removal for factor type shocks. Fish the T part of the shock through the shock bracket and align the bracket on the studs at the top of the shock tower. If you need more of the shock to protrude from the shock tower, simply raise the wheel with a floor jack. Then install the 2 bolts in the T bracket of the shock.

For the Calvert shock, you will need to use the adapter on top of the factory shock tower bracket. First make sure the shock is fully extended. Next install the shock tower bracket. Now place a metal washer on the stud and then a rubber washer. Next install the Calvert bracket, with the cup part down. Then add another rubber washer, a metal washer and the nut. Bolt the bracket assembly to the top of the shock bracket. Make sure all bolts and nuts are tight.



If you haven’t done so, lower the car off the jack stands.

As you can see, installation of front shock absorbers is fairly straight forward. With the cold February weather still pounding the Northeast, I cannot give any driving/racing impressions of the Calvert Racing shocks. Rest assured they will get a good workout once the track opens in the spring.
Attached Thumbnails
Click image for larger version

Name:	gallery1.jpg
Views:	10287
Size:	10.5 KB
ID:	3309

Dennis

65' Stang Street/Strip. Dart 434W NA, Victor heads, G101A 4 Spd, 4:56 rear gear, on 93 octane pushing 3550lbs. [email protected]

Last edited by dennis111; 02-29-2008 at 02:53 AM.
dennis111 is offline
Sponsored Links
Advertisement

post #2 of 4 (permalink) Old 03-01-2008, 09:04 PM
Tech Contributor

Join Date: Jan 2002
Location: Ontario,Canada
Posts: 6,662
Garage
Re: Front Shock Installation of New Calvert 90/10ís

I'll be anxious to hear how they work..I have the CE 3 way adjustables all around on my car and haven't been overly impressed with them..To be fair I've never tried much tuning on them though either...So far they have never matched my 60fts with my old worn out shocks although the car does drive much nicer on the road.


1968 mustang 408W Hybrid..Burns gas and rubber!
[email protected] with a crappy 1.72 60ft.
frdnut is offline
post #3 of 4 (permalink) Old 03-02-2008, 03:09 AM Thread Starter
Tech Contributor Gold

Join Date: Dec 2004
Location: Amish Wonderland Of Central PA
Posts: 4,910
Garage
Re: Front Shock Installation of New Calvert 90/10ís

I had spoke with Travis at Calvert last summer when they were still doing development and testing. It seems that they have 2 years in trying to find the right combination. He said that the Summit/CE's were probably the best thing to use until the new shocks were deemed ready for the track.

I did a manual test of both shocks while they were on the table. The Calvert extends very easily, whereas the Summit/CE's in its 90/10 mode extended with a noticeable amount of resistance. There is no doubt the Calverts will be the winner at transferring the weight on launch.

On the downward stroke they were similiar, although the Calverts probably had a little less resistance there too--just not as night and day as the extension test. Hopefully the Calverts live up to their claim that they settle down completely by the 330 mark (which my car never did with the Summits.). I would like for the nose of the car to be down on the upper end, for both less wind resistance and for better stability.

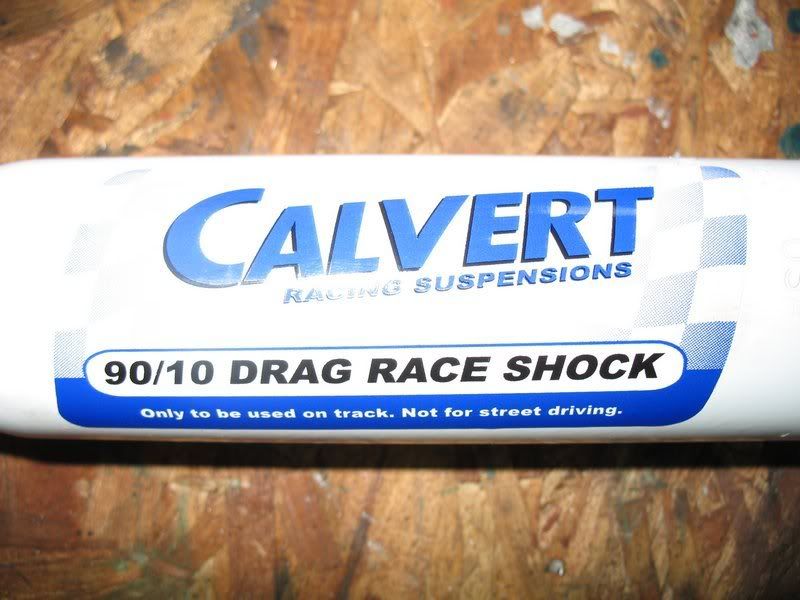

I do wonder how these shocks will ride on the street. Calvert does have a warning printed on the label that they are for track use only.


Dennis

65' Stang Street/Strip. Dart 434W NA, Victor heads, G101A 4 Spd, 4:56 rear gear, on 93 octane pushing 3550lbs. [email protected]

Last edited by dennis111; 03-02-2008 at 04:21 AM.
dennis111 is offline

post #4 of 4 (permalink) Old 03-03-2008, 09:38 AM
Registered User

Join Date: Apr 2002
Location: Merkel, Tx
Posts: 9,251
Re: Front Shock Installation of New Calvert 90/10ís

Quote:
Originally Posted by dennis111 View Post
I do wonder how these shocks will ride on the street. Calvert does have a warning printed on the label that they are for track use only.

The Moroso springs and CE shocks say that too - and we ignore it LOL. I'll be in the market for a couple of pair. I run the CEs and would sure like to see how these work. I run the Cals and Ranchos and they work very well. Have a friend that put some QA1s on the front - he swears by them, I ain't got that kinda bucks.




1967 Falcon 4 door 351C - 70 Mustang 351C
Owner built, owner abused.
